Ridgeback Electron Electric City Bike

The Electron uses the tried and tested SportDrive system with a 300wh battery, making it perfect for short daily trips to work or the shops. Offering a smooth power delivery the Electron is a classic step through bike which offers a comfortable upright riding position with a modern twist. -Dapu MD250S 36v 90nm 250w drive unit. -Phylion rack mount 300wh battery. -Range of up to 40km depending on riding conditions. -Full charge time of 4.5 hours.

Specifications

• Frame: 6061 heat treated aluminium
• Fork: Suntour NEX 63mm travel
• Headset: FSA HS NO.10 1-1/8"
• Shifters: Shimano Acera SL-M3000 9 speed
• Rear Derailleur: Shimano Acera RD-T3000 9 speed
• Chainset: Shimano STEPS FC-E6100 / 44T / 170mm
• Bottom Bracket: Shimano STEPS DU-E6100
• Chain: KMC X9E
• Cassette / Freewheel: Shimano CS-HG200-9 11-36T
• Rims: J19ZK / 36H
• Hubs: Shimano HB-TX505/FH-TX505 / 36H / front / rear
• Spokes: Steel 14g
• Tyres: CST Xpedium Ampero 700x38c
• Brakes: Shimano BR-MT200 Hydraulic Disc Brakes
• Brake levers: Shimano BL-MT200
• Handlebars: Alloy / 16mm rise x 30deg backsweep / 31.8mm barbore / 620mm
• Stem: Adjustable A-head / 90mm
• Saddle: Selle Royal / steel rail
• Seatpost: Alloy suspension / 27.2x300mm
• Pedals: Resin metro

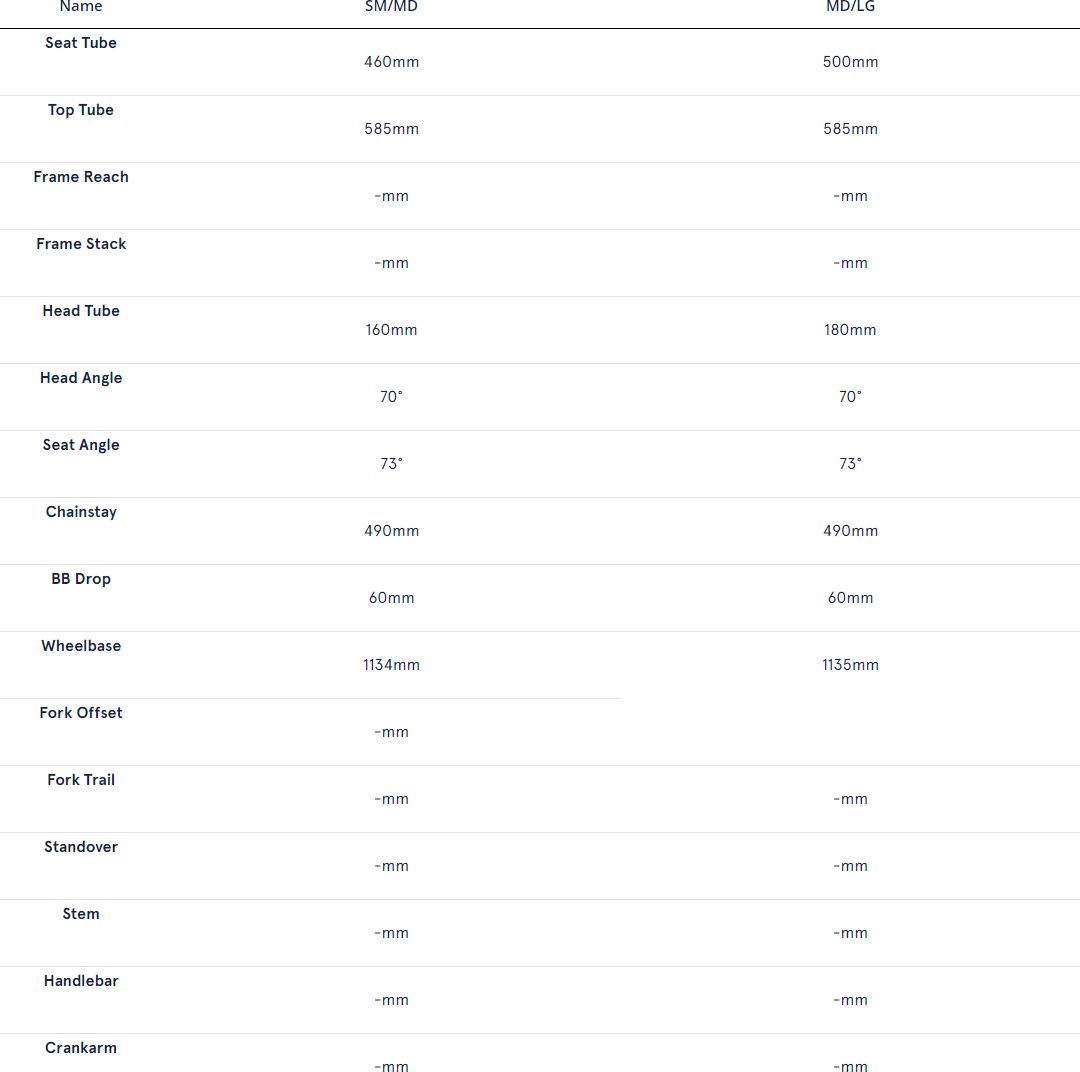

Geometry
